KABLOSUZ |
Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds |
AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range |
3-4 Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Kapasitesi |
Medium
Dual-Band Distribute devices to different bands for optimal performance
MU-MIMO Silmultaneously communicates with multiple MU-MIMO clients |
Working Modes |
Router Mode Access Point Mode |
HARDWARE |
Processor |
Qualcomm CPU |
Ethernet Ports |
2× 10/100 Mbps Ports
*Per Deco Unit Supports WAN/LAN auto-sensing |
Butonlar |
Reset Button |
Power |
12 V ⎓ 1 A |
GÜVENLİK |
WiFi Encryption |
WPA WPA2
|
Network Security |
SPI Firewall Access Control
|
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
Protocols |
IPv4 IPv6 |
Parental Controls |
URL Filtering Time Controls |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
QoS by Device |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
PHYSICAL |
Dimensions (W×D×H) |
3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm) |
Package Contents |

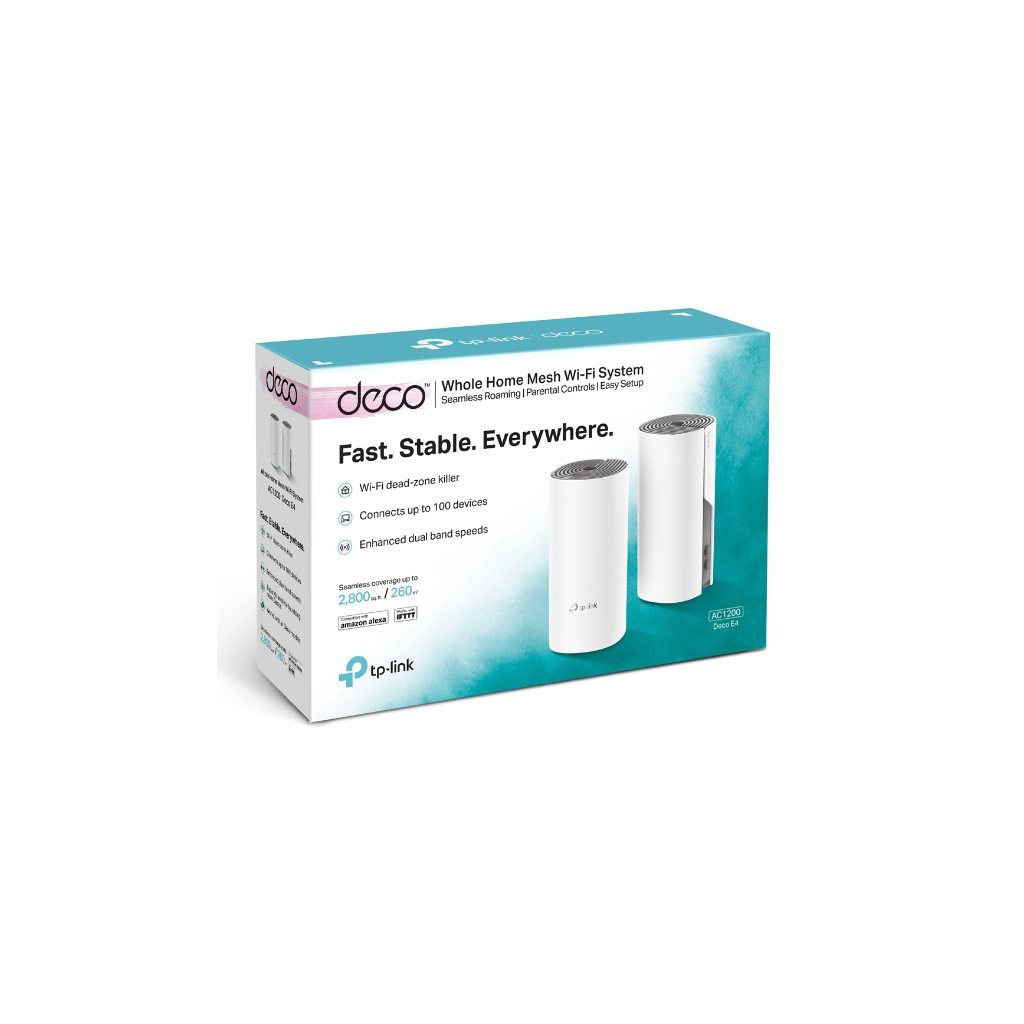

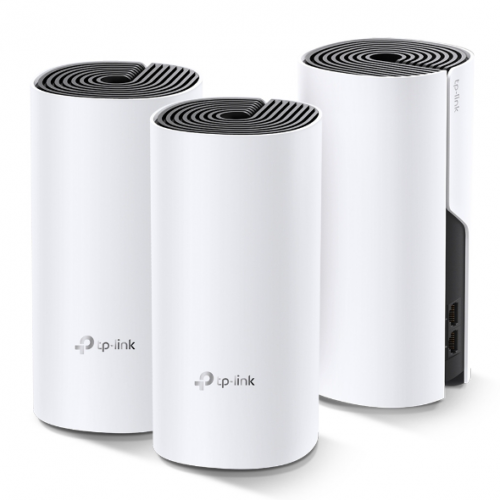

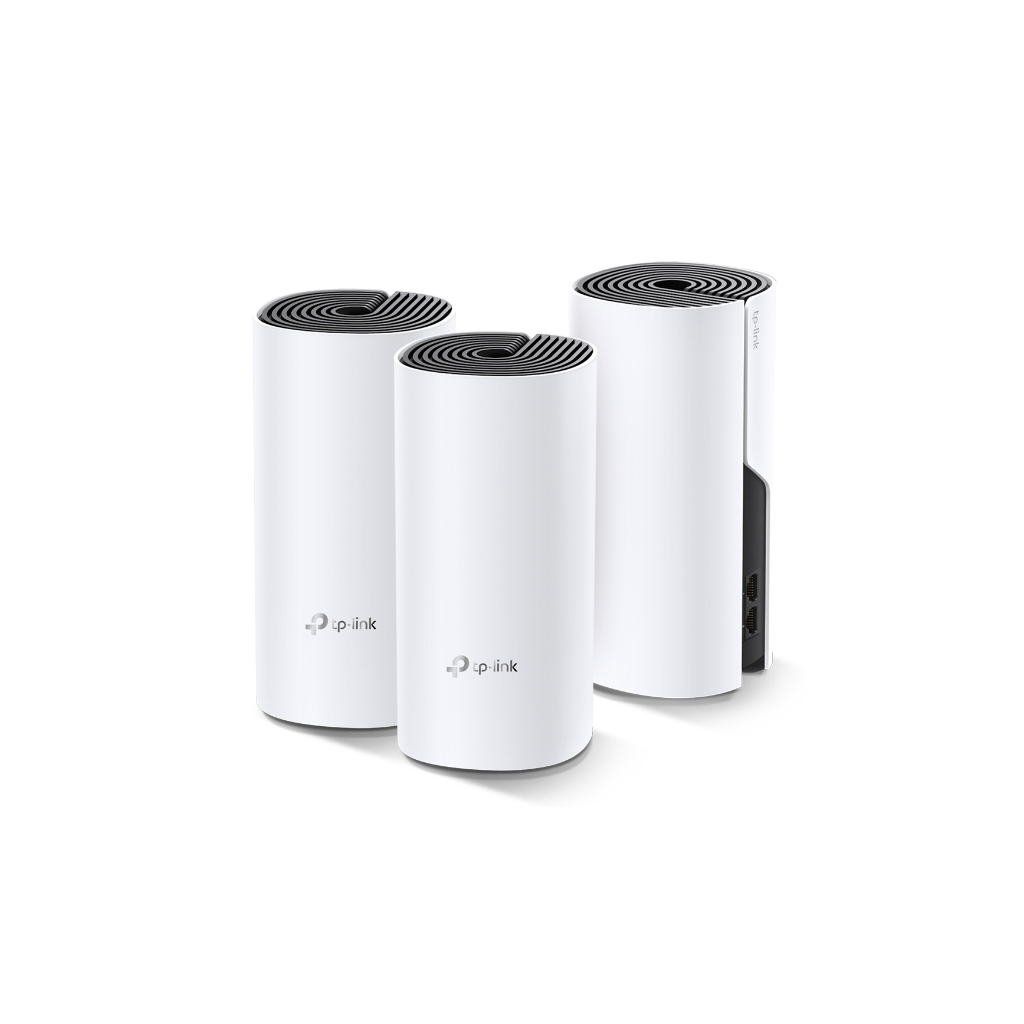

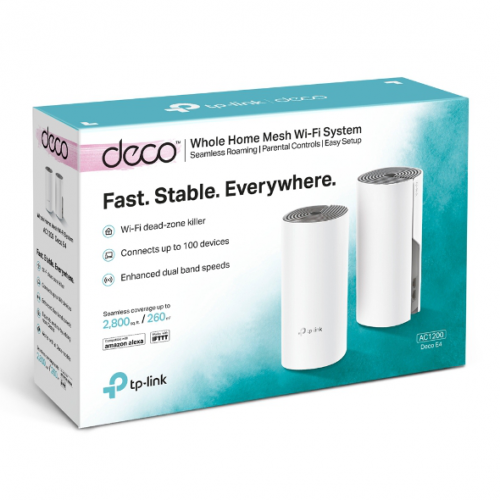

Deco E4 (3-pack) 3 Deco E4R Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide
Deco E4 (2-pack) 2 Deco E4R Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide
Deco E4 (1-pack) 1 Deco E4R Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
DİĞERLERİ |
Sistem Gereksinimleri |
Android 4.4 or later iOS 9.0 or later |
Sertifikalar |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
Ortam |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA |
WiFi Transmission Power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
Ethernet Portu | 2 Adet |
Anten | Dahili |
Wi-Fi Veri Transfer Hızı | 1200 MBPS |
Kullanım Yeri | İç Ortam |
3G-4G Desteği | Yok |
